SPECIFICATIONS



6MP Lens: Dual lens: 2.8 mm



AI Functions: Human Detection

Alarm Action: FTP Photo,telefon Alarm,Email Photo,Local Alarm

Audio Output: Two Way Audio

Brand Name: ANNKE

Color: WHITE

Color Night Vision: Yes

Connectivity: IP/Network Wired

Dual Lens: 180° Wide Viewing Angle

High Definition: 8.0 Megapixels

Hign-concerned Chemical: None

IP Rating: IP67

IR Distance(m): 30M

Image Parameters Switch: Yes

Indoor/Outdoor: Indoor/Outdoor

Installation: Ceiling,Side,Normal,Wall Mounted,Pendant Mount,Vertical Pole Mount,Corner Mount

Internal Storage: None

Lens (mm): 2mm

Lens Quantity: Dual Lens

Megapixels: 8MP

Minimum Illumination(Lux): 0.01

Model Number: I91ET-I91EV

Movement Range(Pan): 0°-360°

Movement Range(Tilt): 0°-360°

Power Mode: Battery Powered

Power Supply: Normal

Power Supply(V): DC12V

Rechargeable Battery: Built in

Scene: Indoor and outdoor

Sensor: CMOS

Shell Material: Plastic

Special Features: Waterproof / Weatherproof

Style: Bullet Camera

Supported Mobile Systems: Android,iOS

Supported Operating Systems: No

TF Card: None

Video Compression Format: H.264,H.265

Viewing Angle : 180°

Zoom: None

Zoom type: None

type 1: security protection

type 10: security camera

type 11: outdoor video camera

type 12: security camera

type 13: rear view camera,camera 180 yours

type 14: cctv cameras

type 15: outdoor poe camera

type 2: Surveillance cameras

type 3: Surveillance camera

type 4: camera video surveillance

type 5: camera security

type 6: 8MP Smart POE Camera

type 7: Smart POE Camera

type 8: dual camera

type 9: outdoor security camera

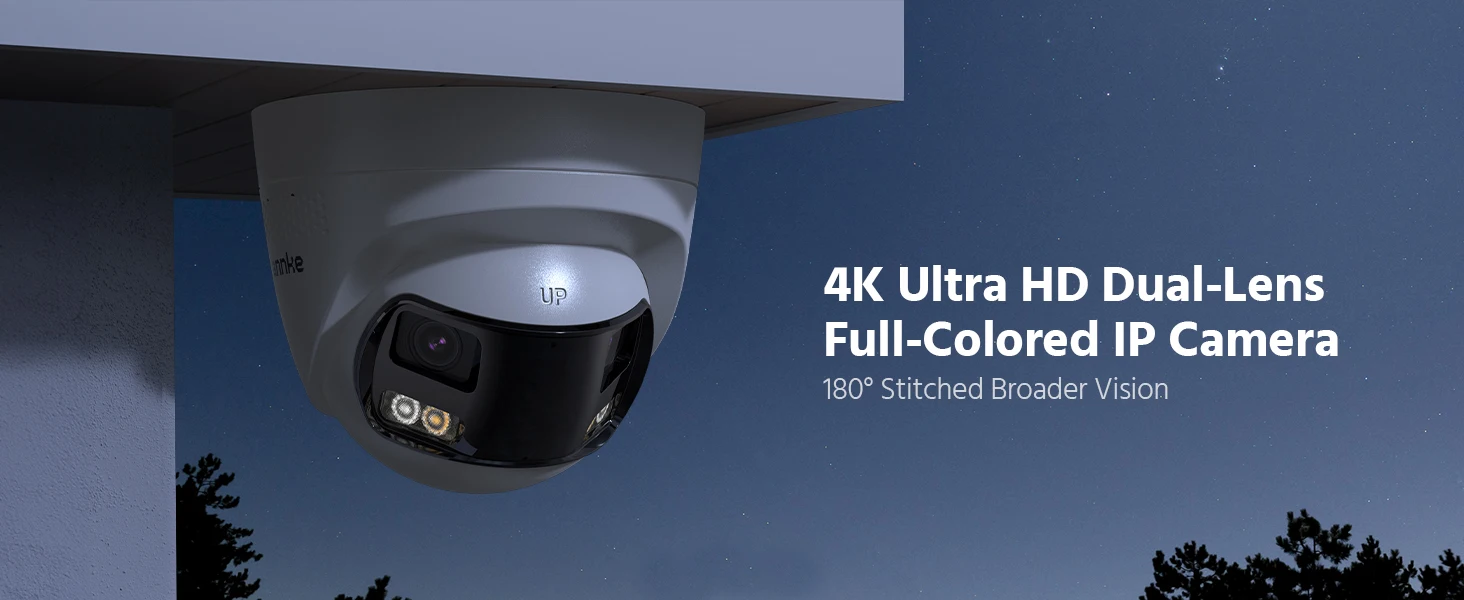

Protect what matters with unmatched clarity and coverage. The ANNKE 8MP DUO POE Camera combines dual lenses to deliver a seamless 180° panoramic view in stunning 4K resolution — no blind spots, no compromises. Designed for outdoor durability, smart detection, and crystal-clear recording day or night.



Model names have been updated: I91DX to I91ET. I91DW to I91EV

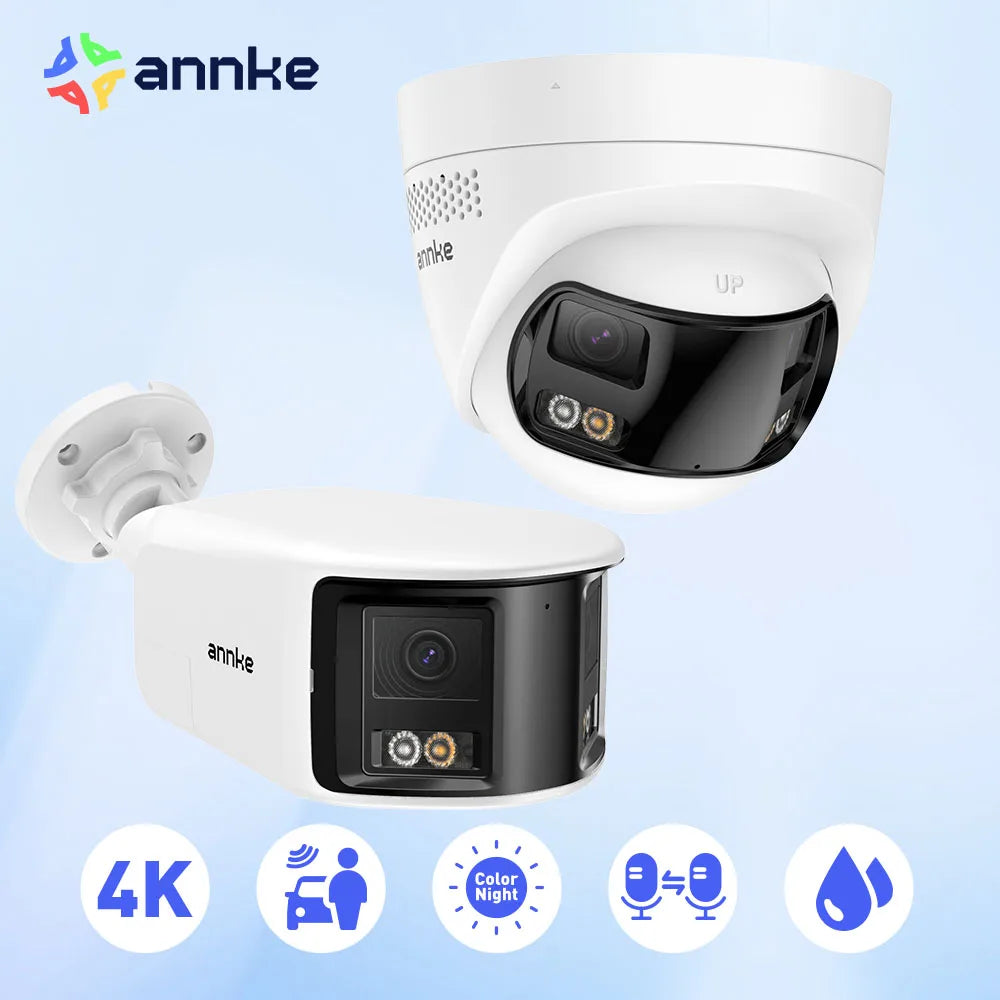

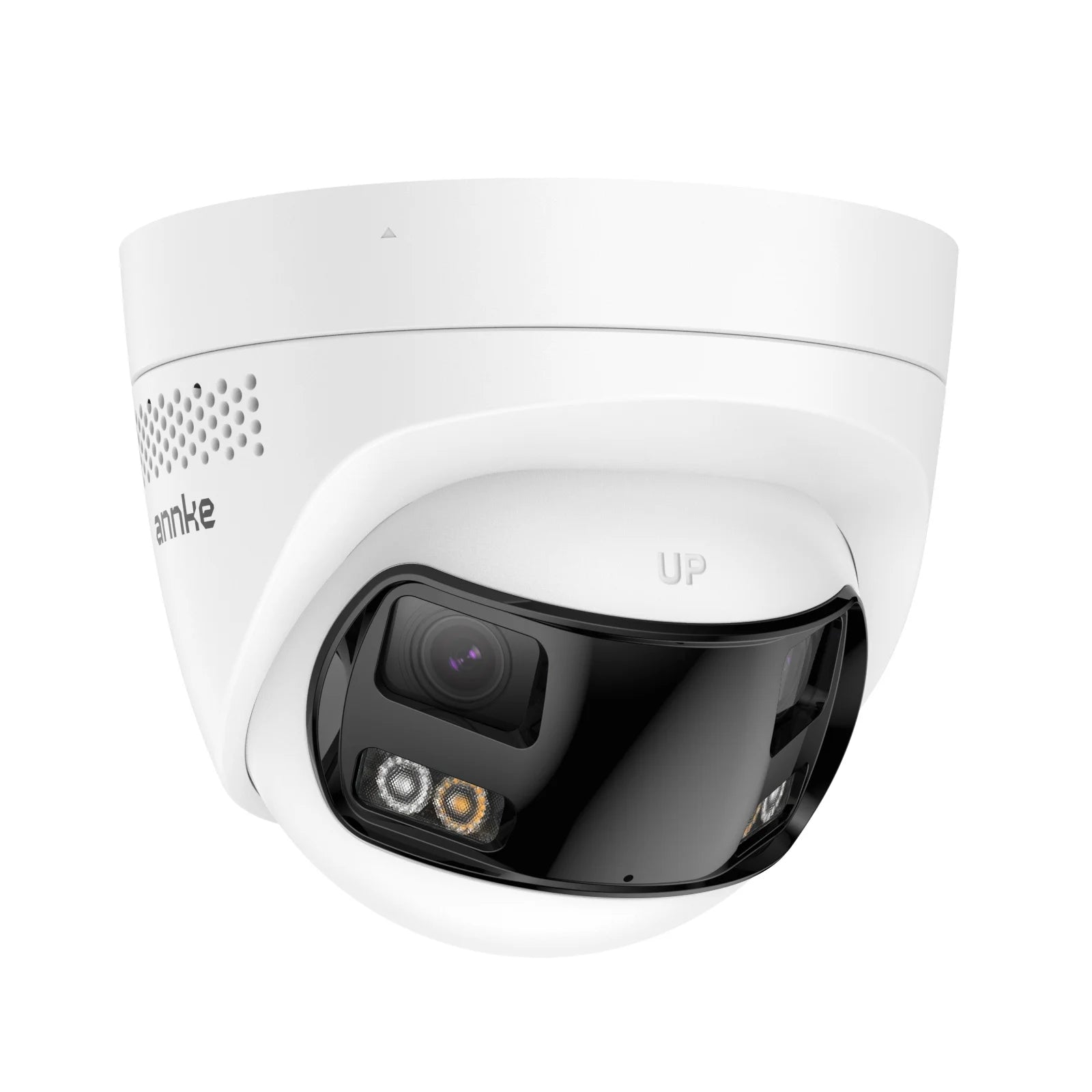

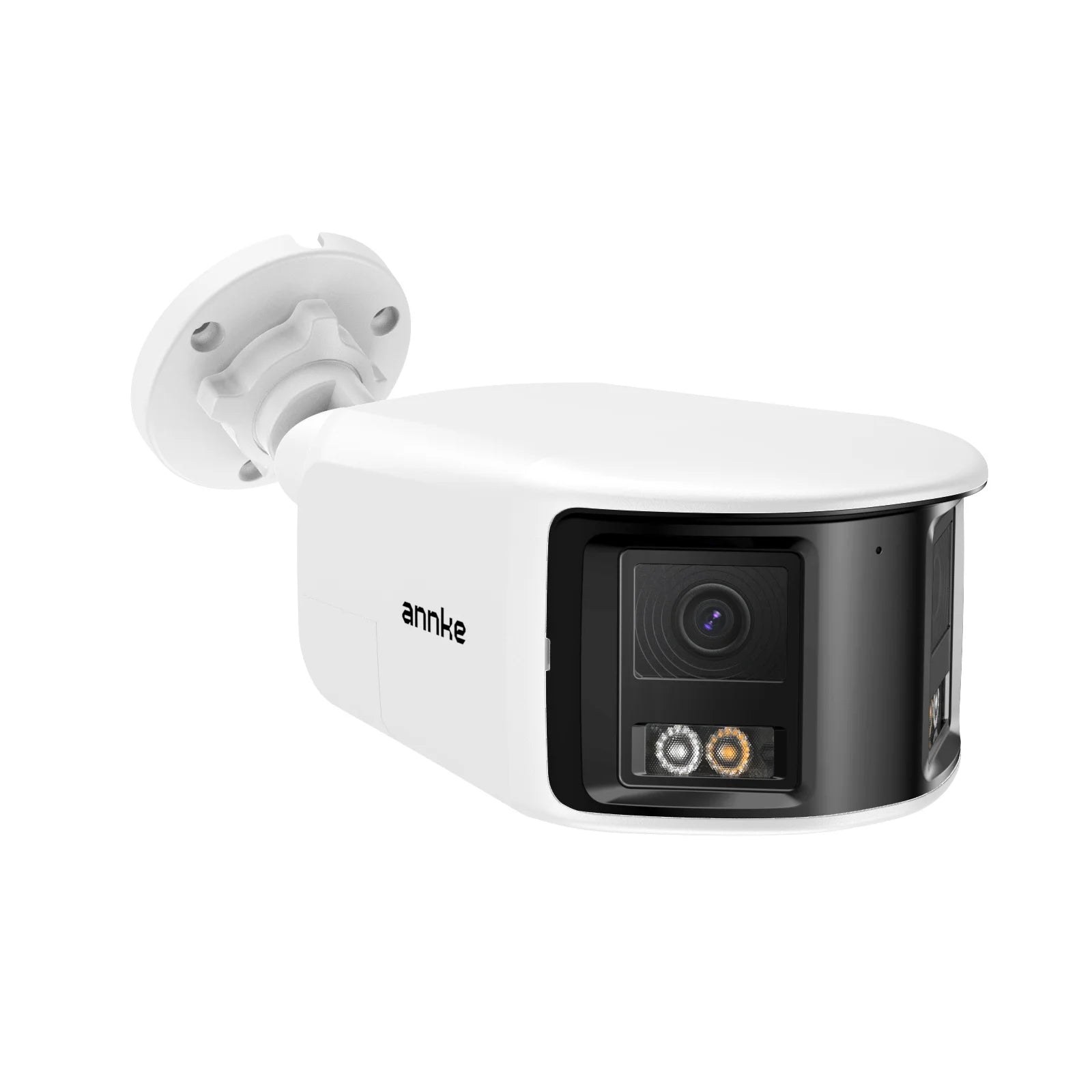

ANNKE 8MP Dual-Lens Outdoor PoE Security Camera for 180° Wide FOV



Cameras :

★ High quality imaging with 8 MP resolution

★ One image that presents all the scenes covered by the camera

★ Provide real-time security via built-in two-way audio

★ Efficient H.265+ compression technology

★ Focus on human and vehicle classification based on deep learning

★ Clear imaging against strong back light due to 120 dB WDR technology

★ Active strobe light and audio alarm to warn intruders off

★ Smart Hybrid Light: White light & IR light up to 30 m

★ Support 512 GB TF storage space

★ Water and dust resistant (IP67)

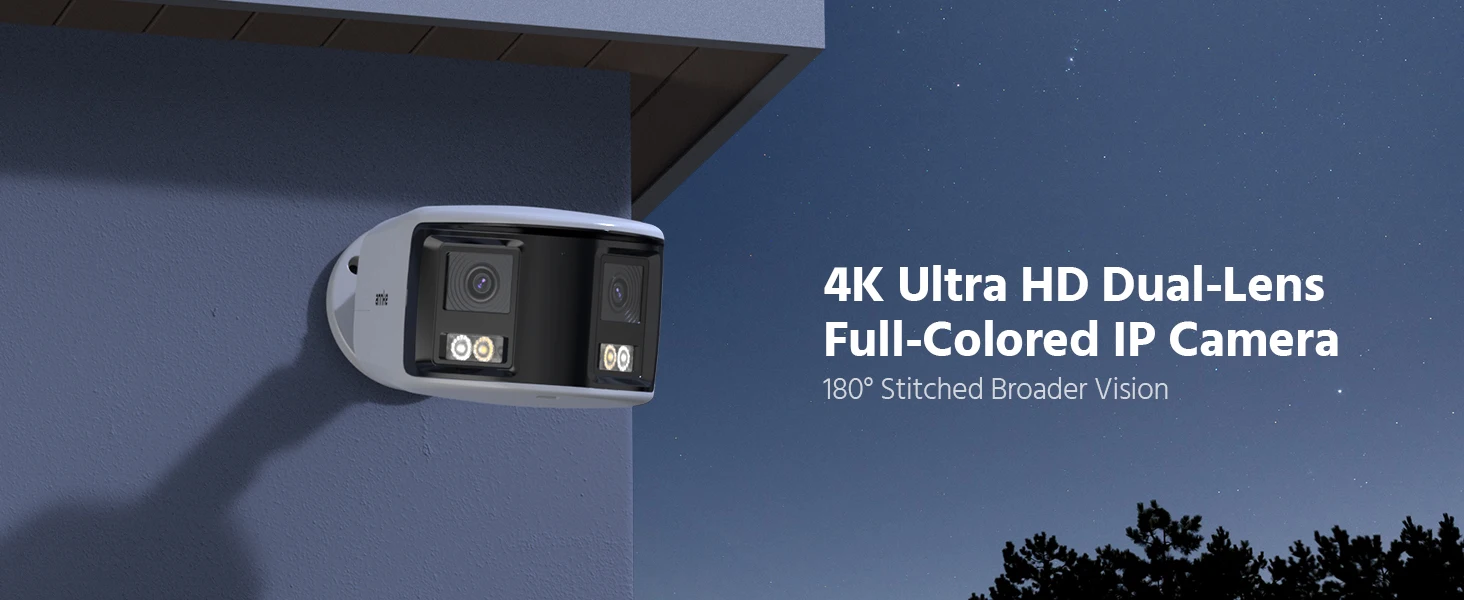

【180° Wider View Features 8MP Clarity】

This dual-lens security cam combines two 1/2.5" BSI sensors into ONE stunning 180° feed without any distortion! Farewell to those regular cams of 90° views in 1080p clarity; cuz this is an ideal choice for your home or business!

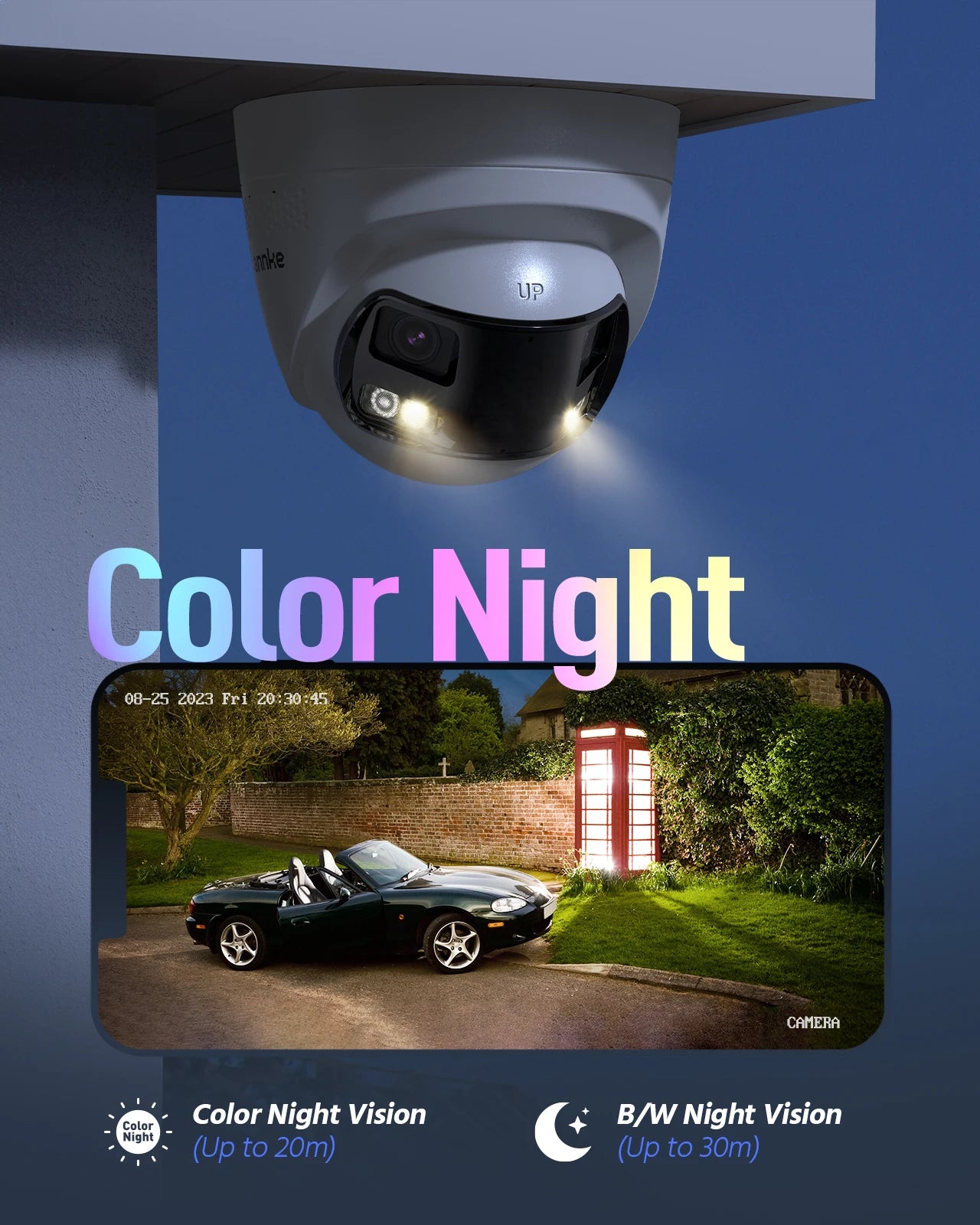

【Full-Color Night Vision, Vibrant As In Daytime】

Equipped with 2 spotlights, this camera revives B&W nights to be colorful as in the day. With it, you may find a lovely squirrel's visit with a pine cone in hands or prevent real threats from happening in the dark.

【Next-Level AI Smart Motion Detection】

Once this surveillance camera detects human & vehicle motion, you'll receive real-time alerts. For your greater relief, you may set the line/zone to ward off the unwelcome by triggering the customizable siren.

【Reachable 2-Way Audio】

2-way talk frees you from staying at home and enables you to answer the delivery men or warn the unwelcome even though you're a thousand miles away. The instant pops-up always reminds you of keeping an eye on your home, too.

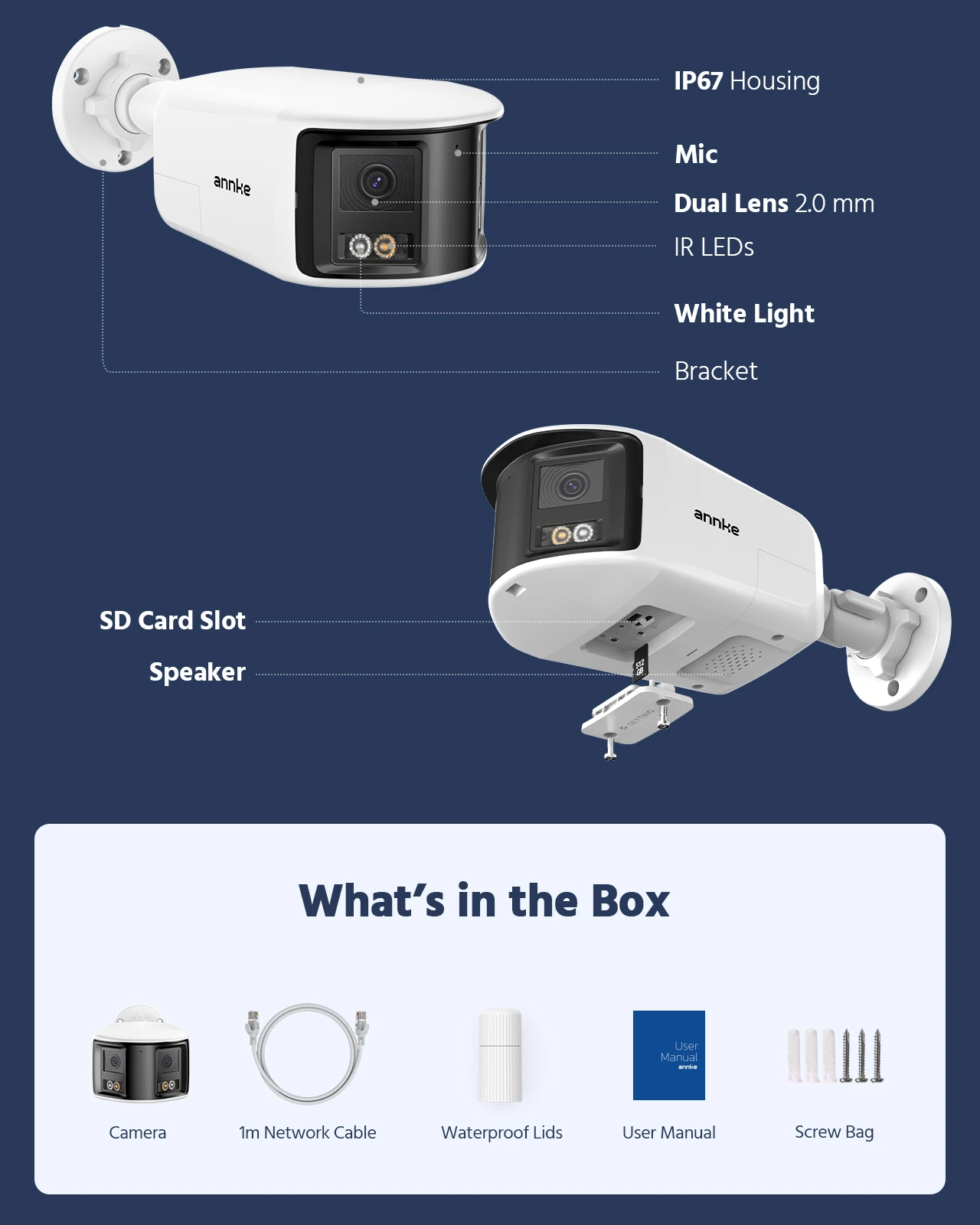

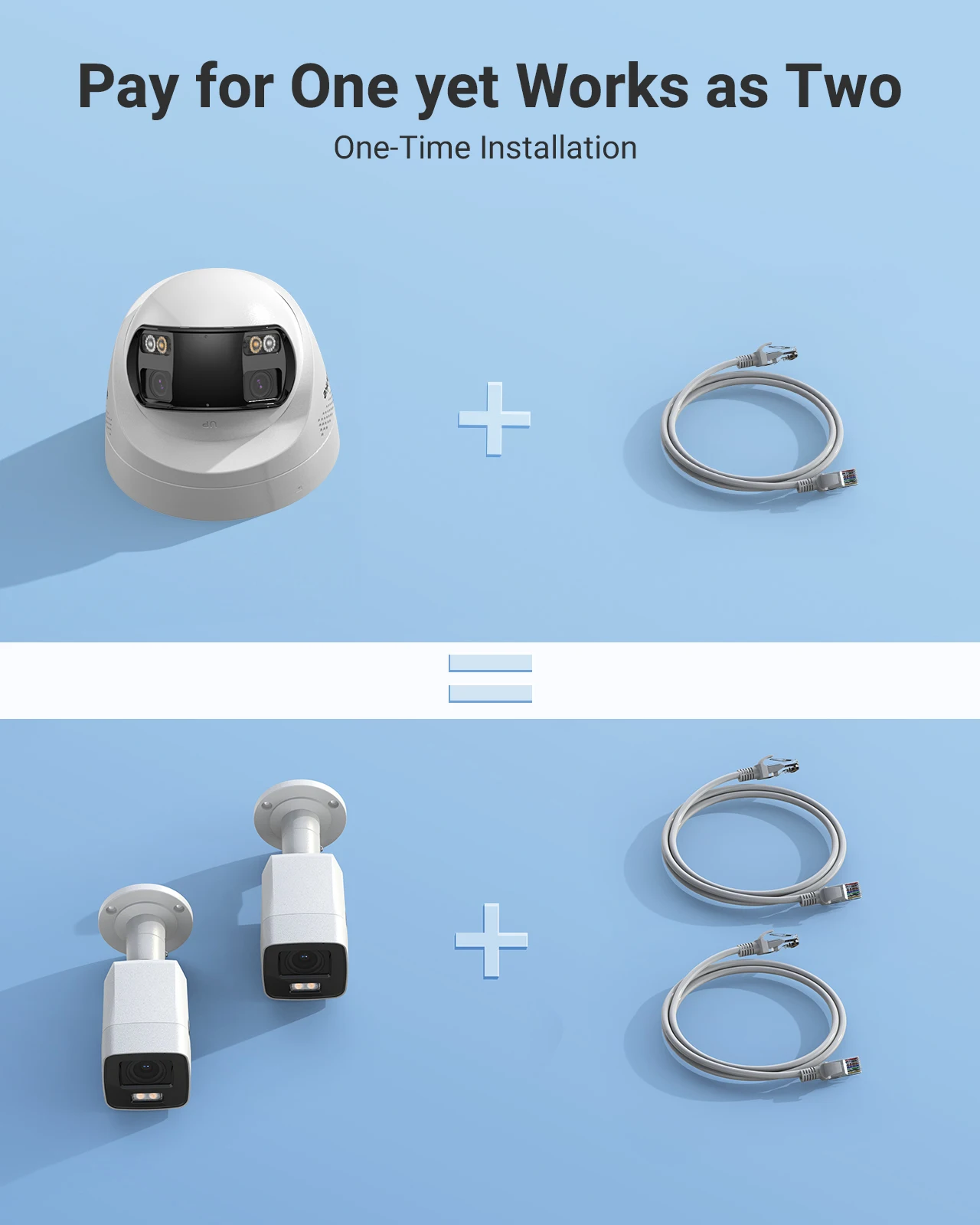

【Friendly-Designed Details Polish Your Usage】

Unlike those multi-cams with many holes to drill & screws to run, this 1 PoE cam works as 2 and takes up only 1 NVR channel. The outstanding IP66 weather-resistant ability boasts against all the harsh conditions.

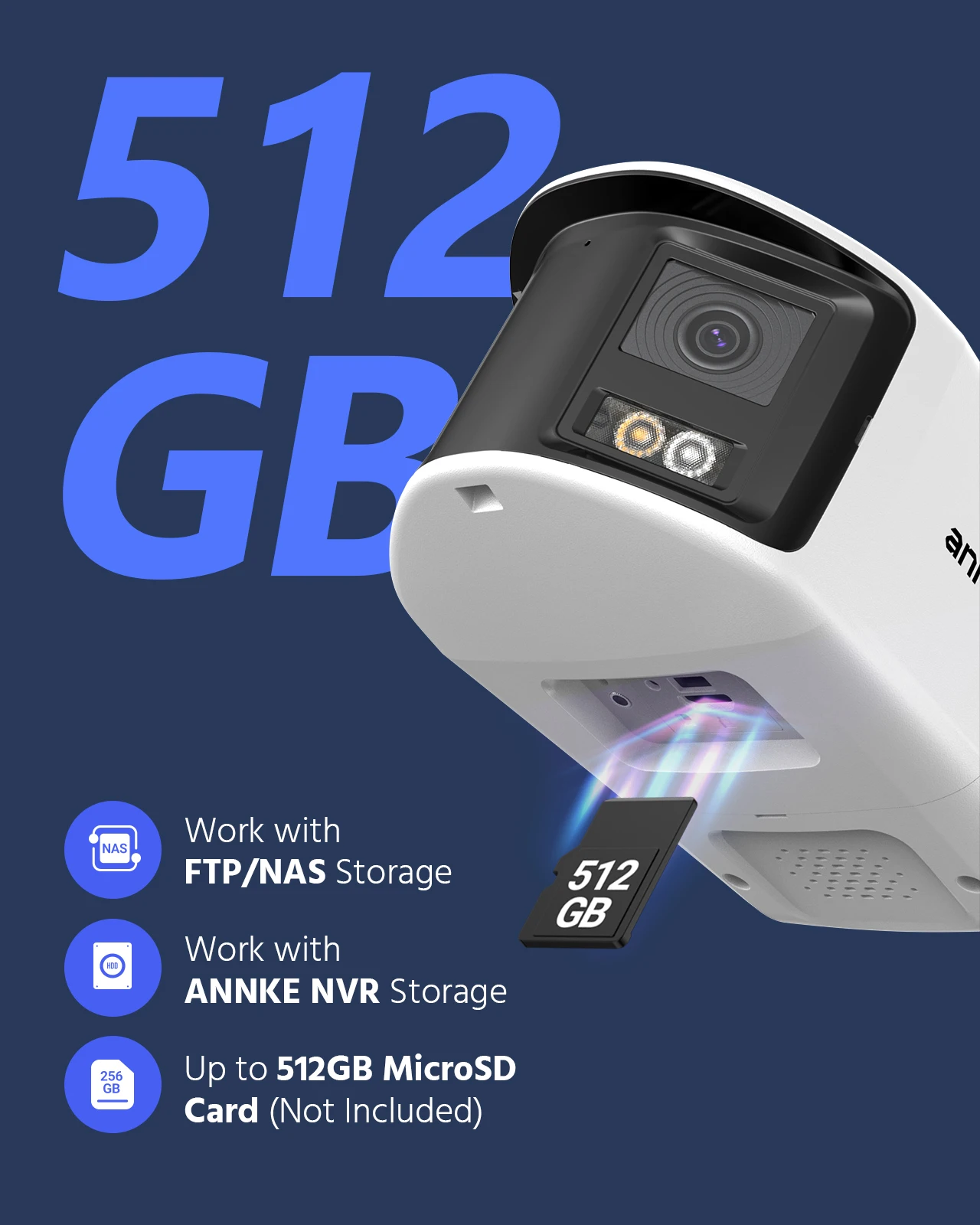

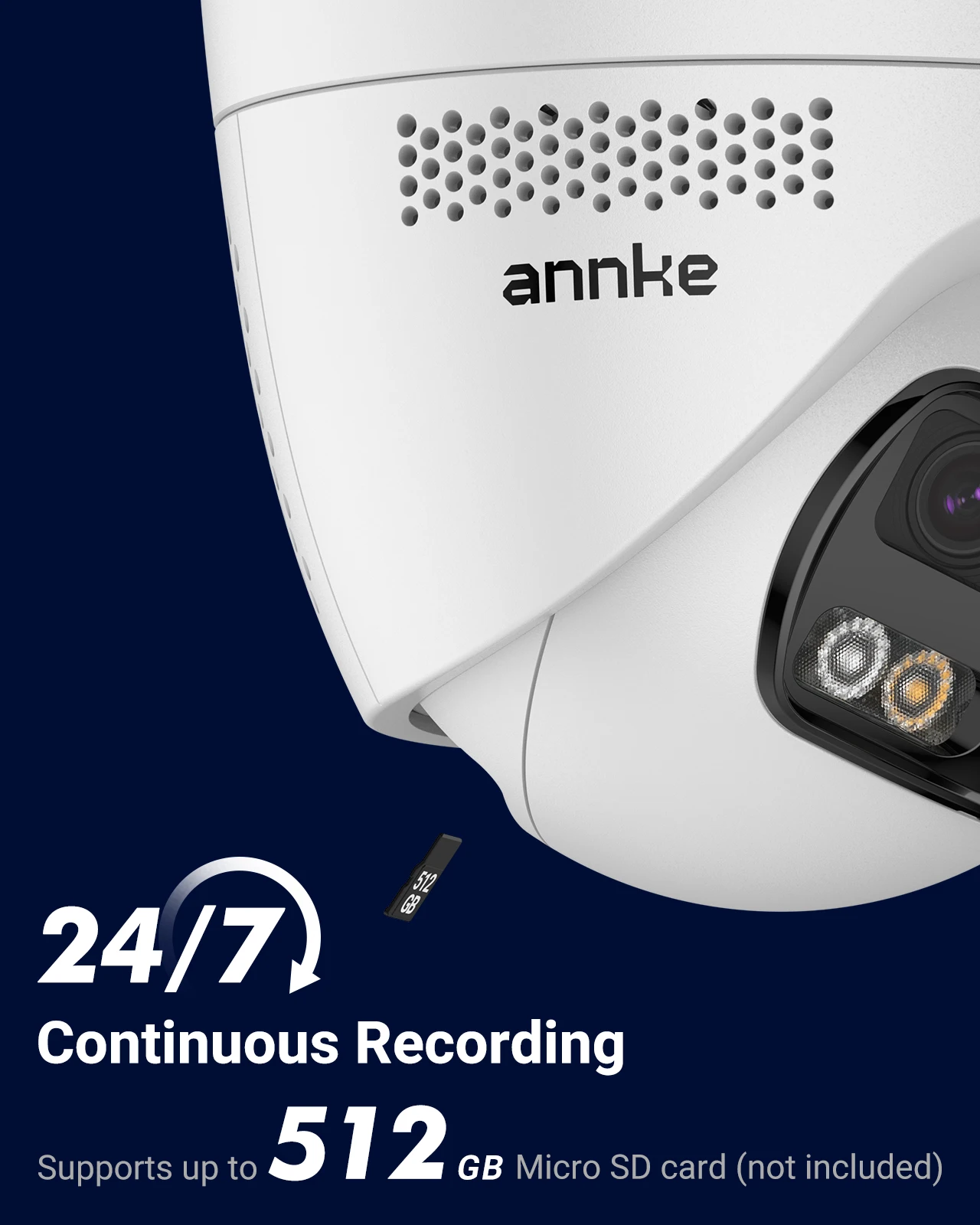

Built-in TF card slot (not including TF card), maximum 512G (automatic loop coverage recording), support NAS, NVR storage

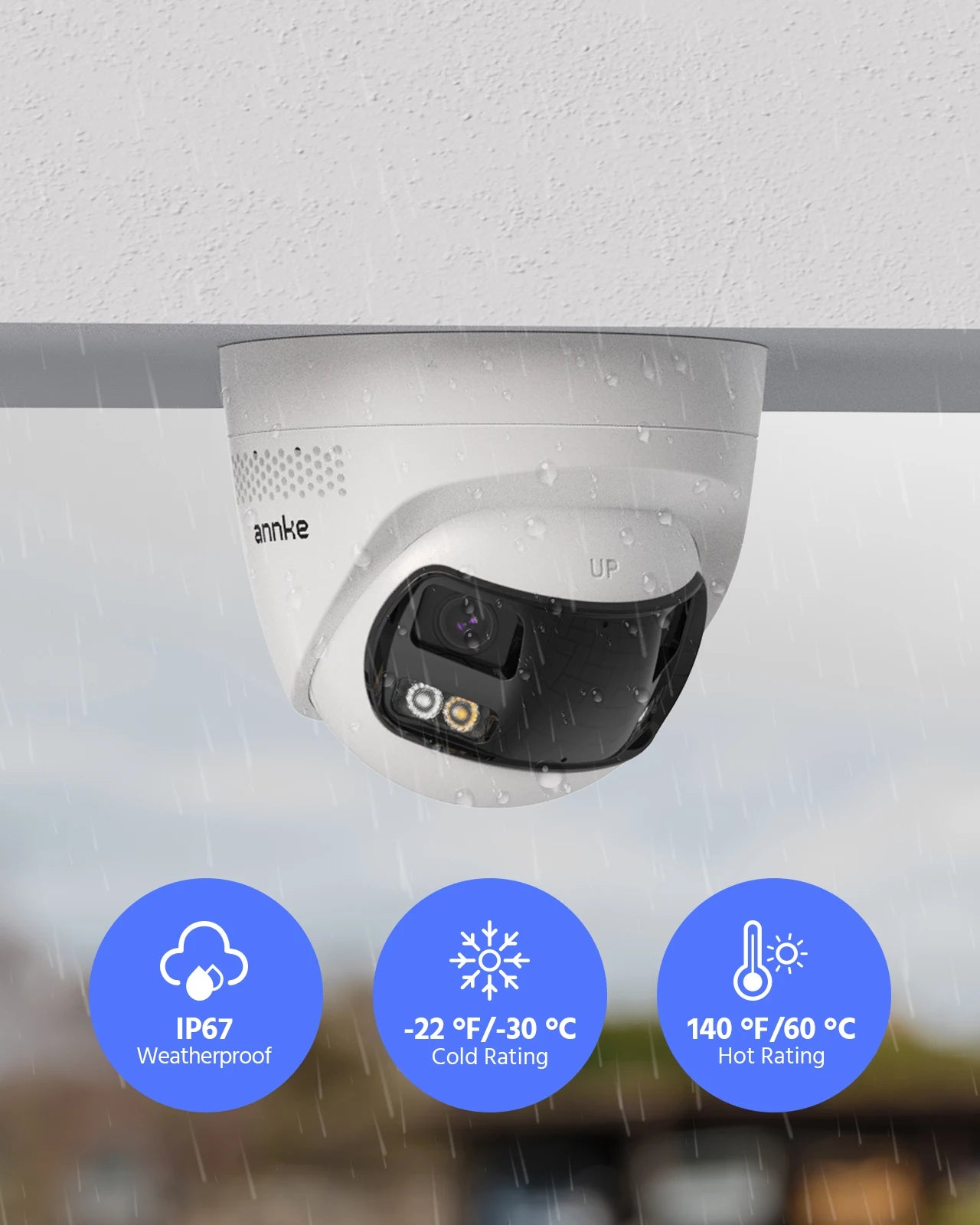

IP67 industrial grade waterproof



Model Number		I91ET/I91EV
IP Camera
Camera	Image sensor	2×1/2.4" Progressive Scan CMOS
	Max resolution	4096 x 1860
	Main Stream	50 Hz: 20 fps (4096 x 1860) 60 Hz: 20 fps (4096 x 1860)
	Sub Stream	50 Hz：20 fps（1200 × 536, 960 × 432） 60 Hz：20 fps（1200 × 536,960 × 432）
	Video compression	Main Stream: H.265+/H.265/H.264+/H.264 Sub Stream: H.265/H.264/MJPEG
	Video Bit Rate	32 Kbps to 16 Mbps
	Built-in Microphone	Built-in Microphone, record with audio
	Audio Compression	G.711/G.722.1/G.726/MP2L2/PCM/AAC-LC
	Built-in Speaker	Yes, max. sound pressure: 10 cm: 97 dB
	Lens	Dual lens: 2 mm
	Min. Illumination	Color: 0.005 Lux @ (F1.6, AGC ON)
	Angle of View	Horizontal FOV: 180°, Vertical FOV: 77°
	Supplement Light Type	Smart light, white light, IR light
	Supplement Light Range	White light up to 30 m, IR light up to 30m
	Motion detection 2.0	Supoort, include human & vehicle detection
	Image Parameters Switch	Yes
	Image Enhancement	BLC, HLC, 3D DNR
	Wide Dynamic Range	120dB WDR
	Network Protocols	TCP/IP, ICMP, DHCP, DNS, HTTP, RTP, RTSP, RTCP, NTP, IPV4, IPV6, IGMP, UDP, QoS, FTP, SMTP
	API	Support Open Network Video Interface protocol, version 19.12
	Basic Event	Motion detection (support human and vehicle detection), video tampering, exception detection
	Audio Alarm	Support(Parameters adjustable,support custom audio, can be triggered from APP)
	Flashing Alarm	White light, frequency adjustable, can be triggered from APP
	Region of Interest (ROI)	1 fixed region for main stream
	Privacy Mask	4 programmable polygon privacy masks
	General Function	Rotate, remote access, IP Address Filter
General	Housing	Metal&Plastic, white color
	Operating Power	PoE (802.3af)，max 11.5W, 12 VDC ± 25%,Ø 5.5 mm coaxial power plug, max 10W
	Ethernet Interface	1 RJ45 10 M/100 M self-adaptive Ethernet port
	Storage	Built-in micro SD/SDHC/SDXC slot, up to 512 GB
	Hardware Reset	Yes
	Operating Temperature	-22 °F – 140 °F /-30 °C – 60 °C
	Indoor/Outdoor	Indoor/Outdoor
	Weatherproof Rating	IP67
	Dimension (L x W x H)	Ø 130.1 mm × 109.1 mm (Ø 5.1" × 4.3")
	Weight	Approx. 586 g (1.3 lb.)
