SPECIFICATIONS



Aerial Photography: No



Anti-wind Ability: as show

Brand Name: NoEnName_Null

Camera Mount Type: other

Charging Time: as show

Charging Voltage: as show

Control Channels: 2 CHANNELS

Controller Battery: not included

Controller Mode: MODE2

Dimensions: 31cm-50cm

Drone Weight: as show

Features: other

Flight Time: 10~20

Hign-concerned Chemical: None

Indoor/Outdoor Use: Outdoor

Is Electric: No Battery

Material: Plastic,Foam

Model Number: KIT, PNP (optional)

Operator Skill Level: Beginner

Package Includes: Original Box

Recommend Age: 14+y

Remote Control: No

Remote Distance: as show

Takeoff Weight: as show

Transit Time (Days): as show

Type: Airplane

Video Capture Resolution: other



Engineered for thrill-seekers and sky explorers, the Baby AR Wing Pro delivers smooth, high-performance FPV flight with a durable EPP build. Whether you're racing clouds or capturing epic views, this 682mm flying wing is your ticket to the skies.



Introducing the Baby AR Wing PRO

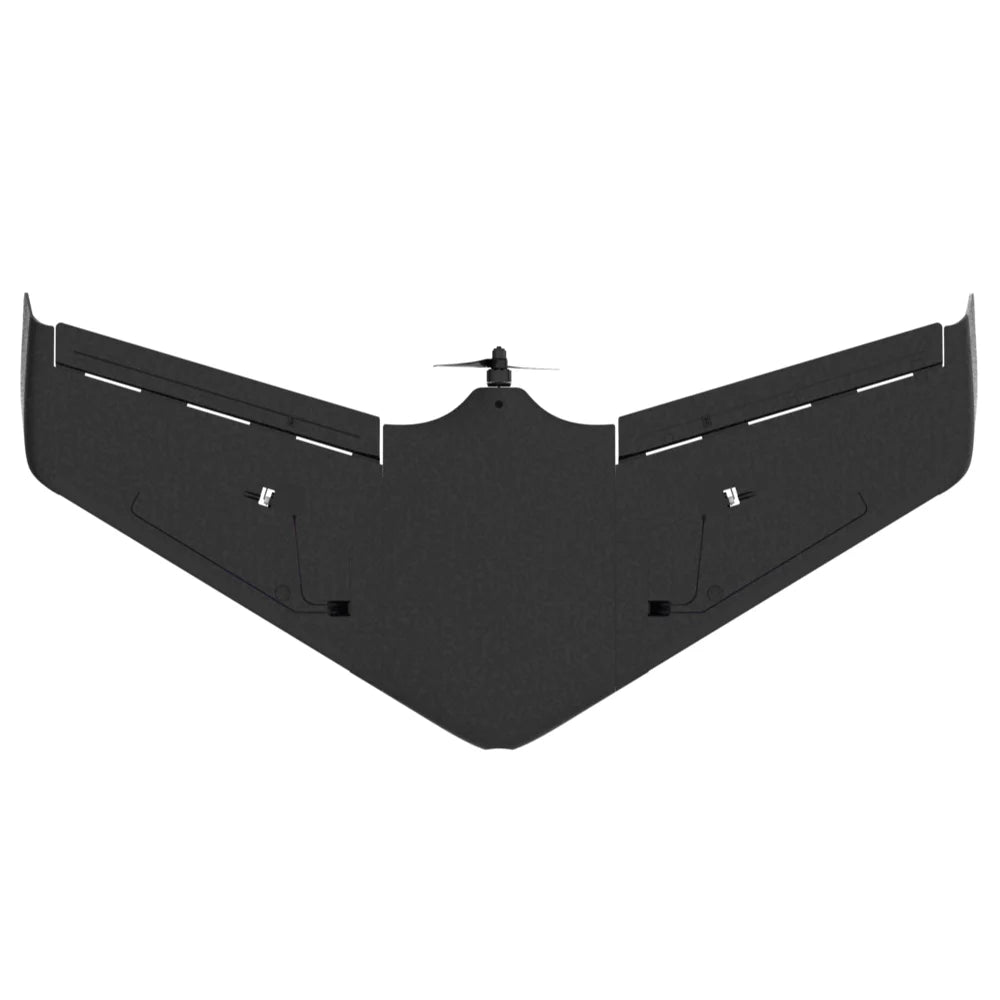

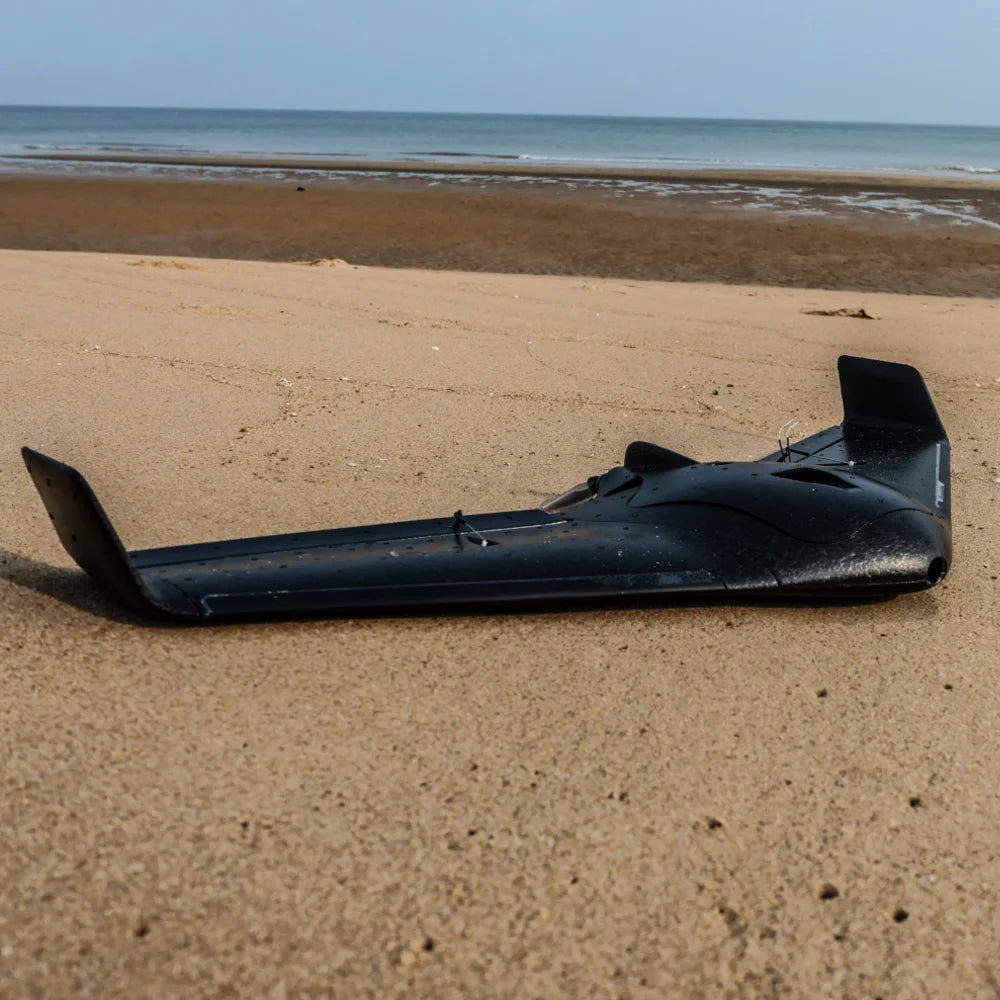

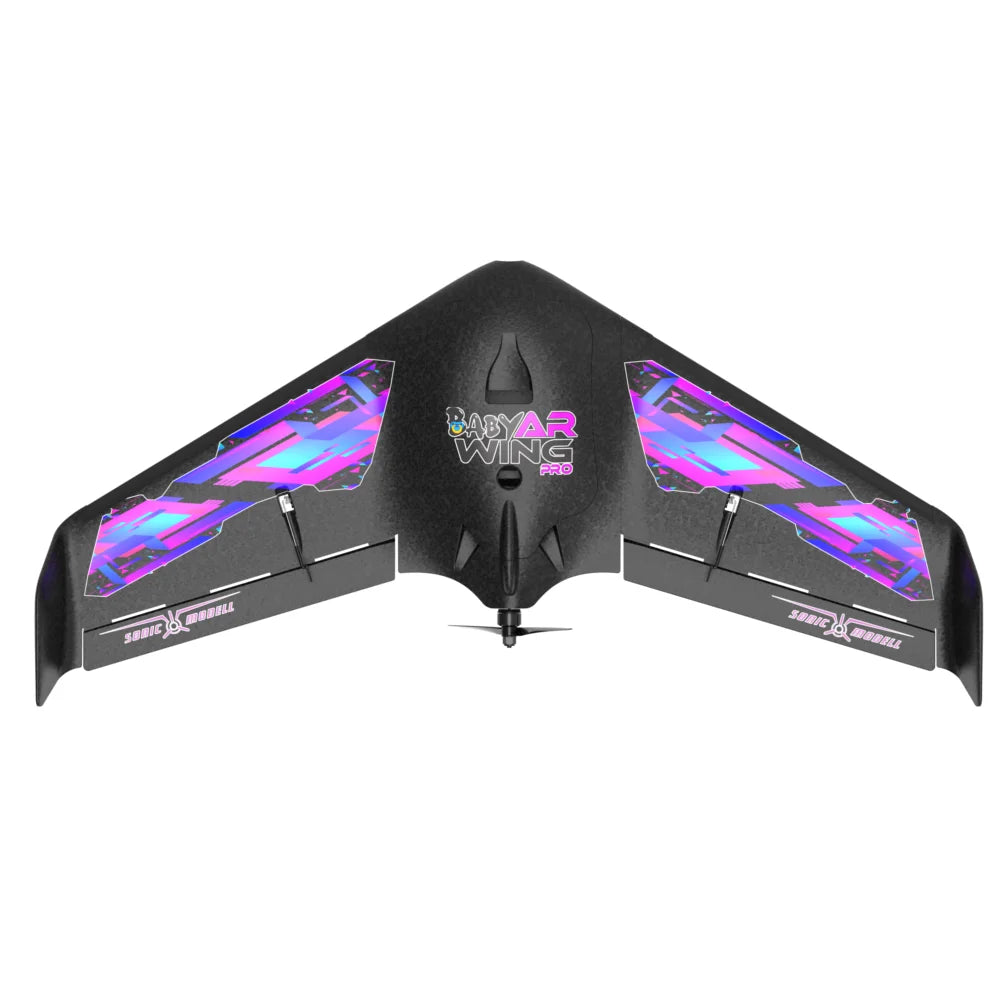

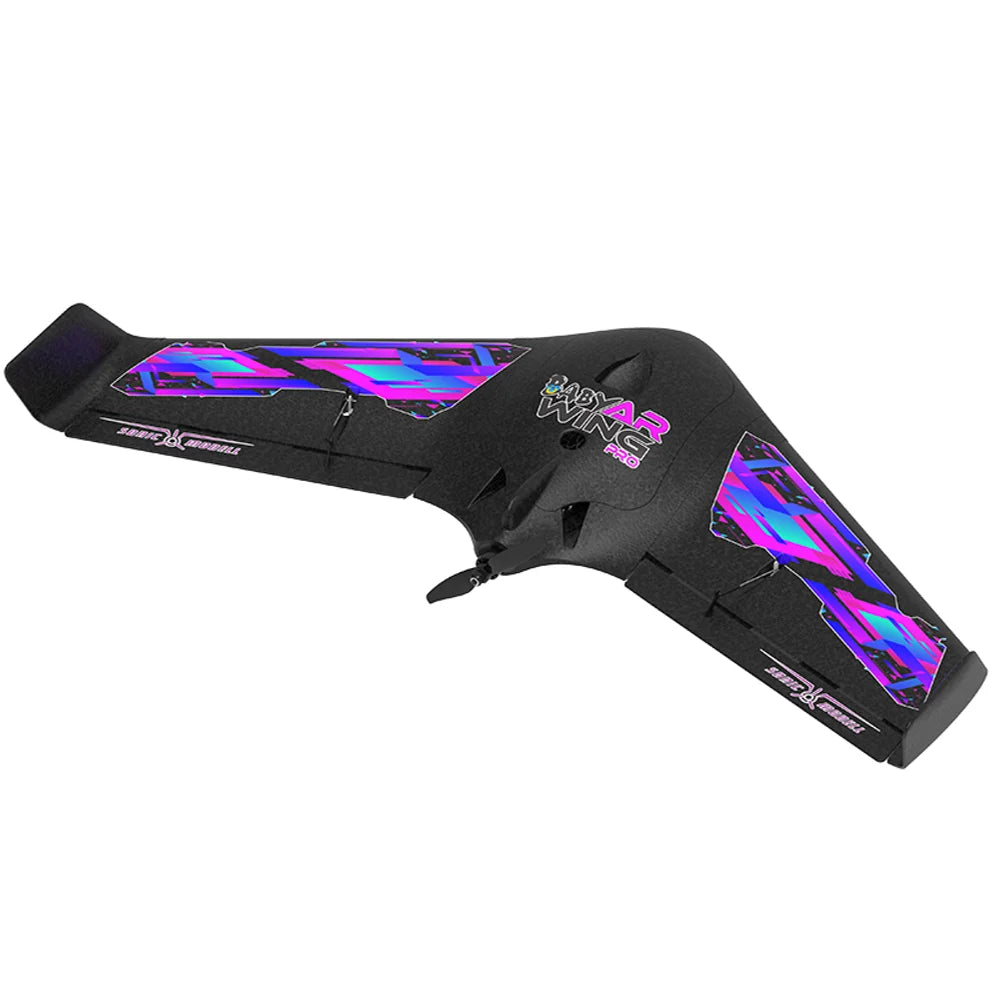

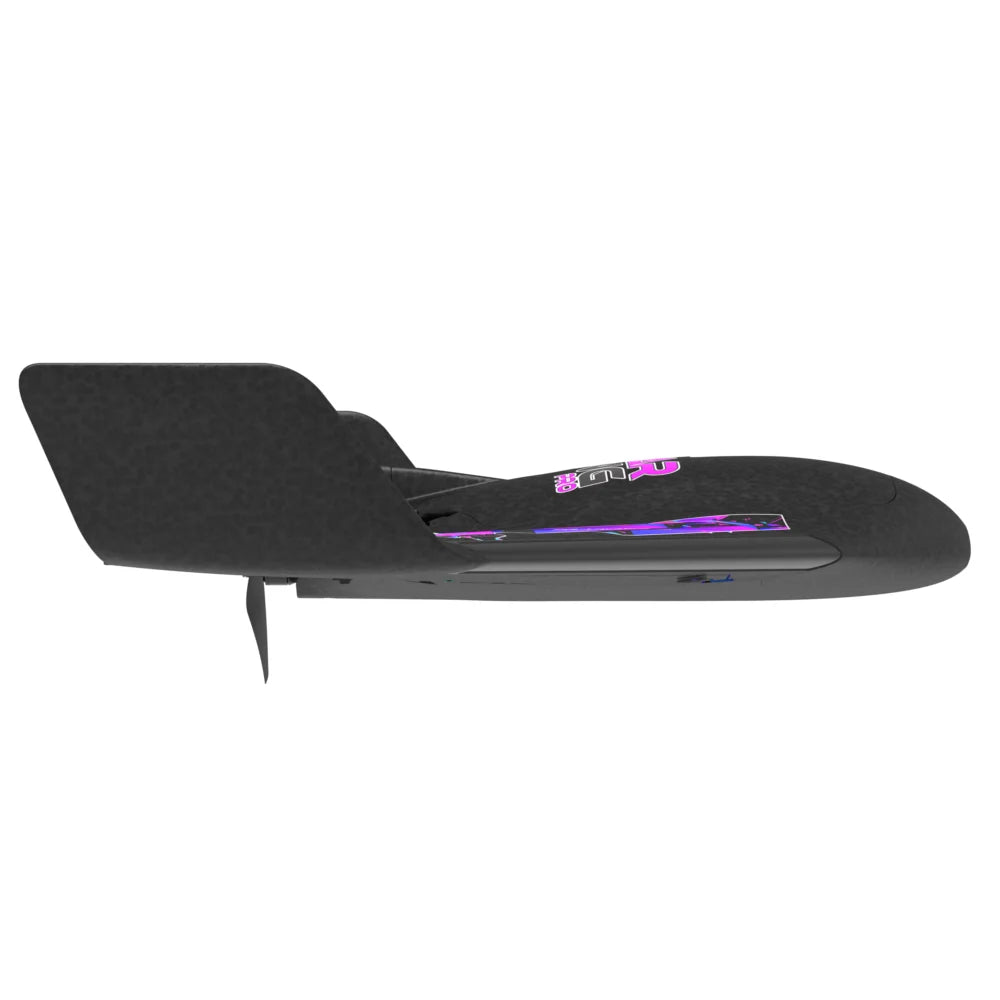

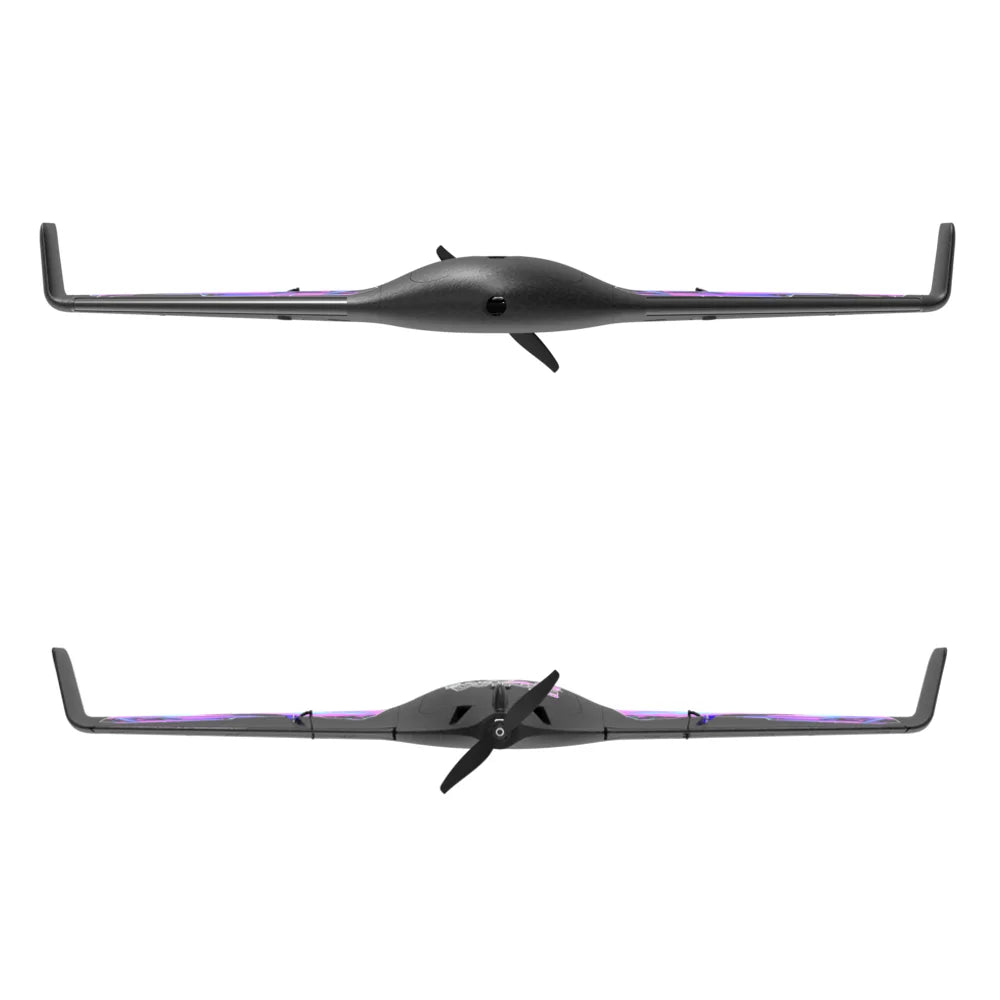

The newest member of the family of FPV flying wings. Based on the popular AR Wing PRO, the Baby AR Wing PRO is a compact and portable flying wing that is perfect for pilots who want to fly anywhere and anytime.



Crafted with high-quality EPP material, the Baby AR Wing PRO has a wingspan of 682mm (26.8") and a length of 320mm (12.59"). PNP Version is equipped with a powerful 1406-3800KV motor, a 30A ESC with 5V 2A BEC, and two 4.3g servos, all of which combine to deliver impressive performance.





The Baby AR Wing PRO features a detachable main wing that allows for easy and glue-free assembly, making it highly portable for outdoor flying. It has a large battery bay that can accommodate a Lipo 3S up to 2200mAh or a 3S 18650 pack (flat type) for extended flight time, and it also has a nose camera bay that is compatible with various HD cameras in the market.



One of the most outstanding features of the Baby AR Wing PRO is its aerodynamic design, with a FPV bay on both sides of the wing and a high-efficiency NACA air cooling system that ensures the FPV gear works in perfect condition. It also has a unique "FlexiLock" hinges design that provides a natural and friction-free swing to your control surfaces.





The Baby AR Wing PRO is designed to be highly agile and responsive, with a high-accuracy ball link control system and built-in CF rod in the ailerons that gives precision and sharp action to your inputs. The "AeroGuard" servo built-in structure protects your servo and arm from impact, and the molded "CG" bump under the wing allows for better adjustment of the center of gravity.



With a maximum speed of 100km/h (with power combo) and a recommended maximum take-off weight of 470grams (with power combo), the Baby AR Wing PRO is an impressive flying machine that can handle a wide range of flying styles and environments. It is the ultimate portable wing, with a big performance in a small package.





Specification:



Item Name: Baby AR Wing Pro



Version: KIT, PNP (optional)



Material: High Quality EPP



Wingspan: 682mm (26.85")



Length: 320mm (12.59")



Motor: 1406-3800KV



ESC: 30A w/5V 2A BEC



Servos: 2pcs 4.3g



Propeller: 4x2.5



Recommended Battery: Lipo 3S up to 2200mAh or a 3S 18650 pack (flat type)



Recommended Flying Capability



Min recommended speed: 31km/h. Depends on AUW.



Max speed (with power combo): 100km/h



Cruise speed (with power combo): 40km/h



Max recommended take-off weight (with power combo): 470 grams.



Refex-on-elevons: 1-1.5mm at level



Recommended max. throws: 9mm





NOTE: These values are approximated and should be considered for reference only. Final figures may vary according to the pilot's skills, FPV equipment, and flying environment.





Features:



1. The AR Wing PRO's little sibling, the Baby AR Wing PRO, is a high-performance aircraft in a small package. It is portable and perfect for outdoor flying.



2. The aerodynamic design features an FPV bay on both sides of the wing with a highly efficient NACA air cooling system that ensures the FPV gear works perfectly.



3. The detachable main wing allows for glue-free assembly, making it easy to transport.



4. The high-accuracy ball link control system provides a quick and agile response in control.



5. The ailerons have built-in CF rods for precise and sharp action.



6. The "AeroGuard" servo built-in structure provides protection from impacts.



7. The "FlexiLock" hinges give a natural and friction-free swing to the control surfaces.



8. The aircraft is molded by tough EPP material and has a pre-built CF spar for enhanced stability and crash resistance.



9. The nose camera bay is compatible with various HD cameras in the market.



10. The large battery bay provides extended flight time and ample space for various Flight Controllers.



11. The molded "CG" bump under the wing allows for better center of gravity adjustment.



12. The optimized air-cooling design keeps the gear safe from overheating.



In conclusion, the Baby AR Wing PRO is a high-performance aircraft that is portable, durable, and perfect for outdoor flying. With its impressive features and specifications, it is sure to provide an exciting flying experience for pilots of all skill levels.





KIT Includes:



Baby AR Wing Pro KIT with all hardware.



KIT package size: 35*20*12.5cm



KIT package weight: 440g



Note: Motor, ESC, Servo, Propeller, Transmitter, Receiver, Battery, Charger and Glue are not included.





PNP Includes:



Baby AR Wing Pro KIT with power combo (motor, esc, servos, propeller, and hardware.)



PNP package size: 35*20*12.5cm



PNP package weight: 480g



Note: Transmitter, Receiver, Battery, Charger and Glue are not included.
